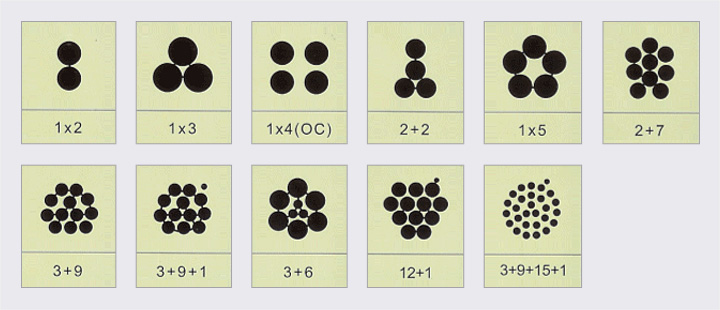

Steel Cord Structure

Construction Using Part Lay Length(mm) Diameter(mm) Break Force(Kg) Linear Density(g/M)
2 X 0.30 HT PCR Belt 14.0 ± 0.07(S) 0.60 ± 0.03 Min 41 1.12 ± 0.05
2＋2X0.25 HT PCR Belt 14.0 ± 0.07(S) 0.60 ± 0.10 Min 57 1.55 ± 0.08
2＋2X0.25 Reg PCR Belt 14.0 ± 0.07(S) 0.60 ± 0.10 Min 50 1.55 ± 0.08
4X0.25 OC PCR Belt 14.0 ± 0.07(S) 0.81 ± 0.08 Min 48 1.55 ± 0.08
2＋2X0.38 LTR Belt 16.0 ± 0.05(S) 1.00 ± 0.15 Min 100 3.60 ± 0.18
2＋2X0.35 HT LTR Belt 16.0 ± 0.05(S) 0.94 ± 0.09 Min 100 3.60 ± 0.16
3＋6X0.35 Reg TBR Belt 10/18(S/Z) 1.13 ± 0.05 Min 158 5.36 ± 0.27
3＋6X0.35 HT TBR Belt 10/18(S/Z) 1.13 ± 0.06 Min 180 5.34 ± 0.30
3＋9X0.22+W TBR Carcas Chafer 6/12/5(S/S/Z) 1.16 ± 0.06 Min 115 3.84 ± 0.20
2＋7X0.22+W TBR Carcas Belt 6.3/12.5/5.0(S/S/Z) 1.10 ± 0.05 Min 86 2.94 ± 0.15
3+9+15X0.22+W TBR Carcas Belt 6/12/18/3.5(S/S/Z/S)
6/12/18/5.0(S/S/Z/S)		 1.60 ± 0.06 Min 250 8.47 ± 0.42
3+9+15X0.175+W TBR Carcas 6/12/18/3.5(S/S/Z/S)
6/12/18/5.0(S/S/Z/S)		 1.33 ± 0.05 Min 160 5.40 ± 0.20
3X7X0.20 HE TBR Belt 3.9/6.3 (S/S) 1.53 ± 0.07 Min 160 7.0 ± 0.35
3X7X0.22 HE TBR Belt 4/6/(S/S) 1.53 ± 0.07 Min 130 5.80 ± 0.30
3X4X0.22 HE TBR Belt 3.2/6.3(S/S) 1.20 ± 0.05 Min 90 3.95 ± 0.20
